Designing Event Consumers: Everything About Commit Offsets in Kafka
Hello there, in this article, We will deep dive into kafka consumers and key fundamentals. Firstly we will talk about what is a kafka consumer, and how can we manage consumers effectively. Then we will focus “offset commit” and “store offset” concepts. Lastly, we will look how can we implement different type consumers for specific use cases. The code samples to be given in the article will be given via NET. Lets get started!
What Is Consumer ?

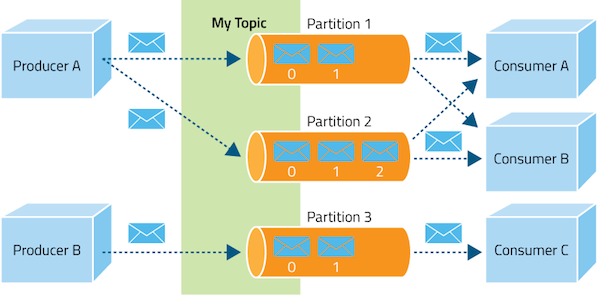

Kafka consumers are the applications that subscribe some topics, and reads messages from them. In kafka, every consumer has a consumer group and each partition of a topic is consumed by only one group member.

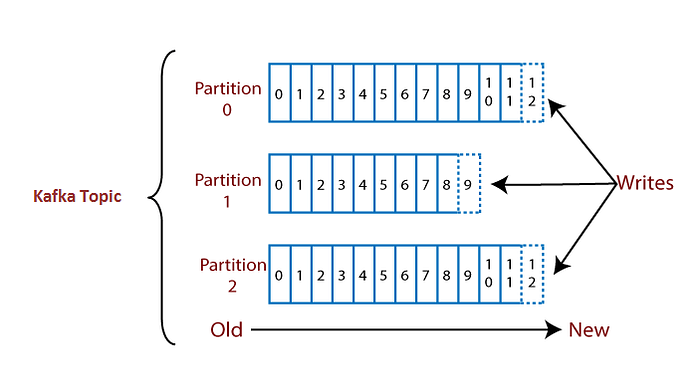

In Kafka, an offset is a unique identifier assigned to each record (message) within a partition of a Kafka topic. Offsets play a crucial role in managing the position of consumers and ensuring that they can correctly process messages in the right order. Offsets are stored persistently by Kafka, allowing consumers to resume from a specific point in the event of a failure. Every consumer notifies kafka by committing the offset information it has processed. Please note, offset is unique only within a partition, not across partitions.
Offsets are of great importance in managing consumers correctly. Kafka offers multiple methods for offset management, and it is important to master these approaches if we want to manage our consumers effectively. So, let’s talk about some important concepts about offset management.
Committing Offset
Committing an offset means saving the offset information to kafka brokers. This process is used to keep track of which messages have been successfully processed by the consumer. If the consumer restarts or crashes, it can resume processing from the last committed offset, ensuring that messages are not reprocessed or skipped.
Auto Offset Commit
Kafka clients can be configured to automatically commit offsets at regular intervals using the enable.auto.commit configuration. The interval is defined by auto.commit.interval.ms. This commit process done periodically by a background thread at an interval specified by the config property. An offset becomes eligible to be committed immediately prior to being delivered to the application via the Consume method.
var config = new ConsumerConfig
{
...
// Enable auto-committing of offsets.
EnableAutoCommit = true
}
...
while (!cancelled)
{
var consumeResult = consumer.Consume(cancellationToken);
// process message here. Messages will be committed automatically.
...
Console.WriteLine("Message Processed!")
}This strategy introduces the potential message loss in the case of application failure, because the application may terminate before it finishes processing a particular message, but auto commit may have been made. In this case committed offsets will never be consumed again. Sometimes auto commit could also lead to duplicate processing of messages in case consumer crashes before the next auto commit interval.
Manuel Offset Commit
Consumers can also commit offsets manually using APIs like commitSync() or commitAsync(). This provides more control and allows offsets to be committed after certain application-defined events, such as after processing a batch of records. For committing offsets manually, we have to disable auto offset commit.
var config = new ConsumerConfig
{
...
// Disable auto-committing of offsets.
EnableAutoCommit = false
}
...
while (!cancelled)
{
var consumeResult = consumer.Consume(cancellationToken);
// process message here.
...
//committing all the offsets we consumed
consumer.Commit();
//or we can commit only offset of the processed message
consumer.Commit(consumeResult);One downside of this synchronous commit is that it may have an impact on the application throughput as the application gets blocked until the broker responds to the commit request. Because of that we should generally avoid blocking network calls (including synchronous use of Commit).
Storing Offset
Storing an offset refers to the act of keeping the current offset in a local variable or in-memory data structure within the consumer application during processing. You can store the processed offsets in local, and then commit them in bulk. Offset committing and storing offset are not alternatives but complementary to each other.
For same programming languages, there is no storing offset mechanism, so you have to store offsets yourself, then commit in bulk. But for some languages, there are mechanisms that enable this behavior.
For dotnet, we can set EnableAutoOffsetStore config for enable/disable auto storing offset, and we have StoreOffset method to store offset manually in confluent-kafka-dotnet library.
This is the sample code that storing offsets and committing in bulk manually;
var config = new ConsumerConfig
{
EnableAutoCommit = false
EnableAutoOffsetStore = false
}
var offsetCount = 0;
...
while (!cancelled)
{
var consumeResult = consumer.Consume(cancellationToken);
// process message here.
...
//Store processed offset
consumer.StoreOffset(consumeResult);
offsetCount++;
if(offsetCount == 5)
{
//commit offsets manually
consumer.Commit();
offsetCount = 0;
}
}In the code you can see above, we are committing offsets manually periodically in every 5 message. In this scenario, it is possible that we may experience a performance problem due to the blocking network call consumer.Commit();
Combining Offset Commit / Store Offset
As we said above, these 2 method are not alternatives, but complementary to each other. So we can use them together to create a more effective structure.
We can set auto commit as enabled, so we won’t need to commit offsets manually. We will prevent blocking network calls. Also we can set EnableAutoOffsetStore as disabled, because we want to be in full control of what offsets will be committed.
var config = new ConsumerConfig
{
EnableAutoCommit = true
EnableAutoOffsetStore = false
}
...
while (!cancelled)
{
var consumeResult = consumer.Consume(cancellationToken);
// process message here.
...
//Only store processed offsets. Offset commiting will be done automatically
consumer.StoreOffset(consumeResult);
}This approach is effective for many scenarios. Confluent also recommends using this approach instead of manual offset commits. But in today’s world where we develop complex applications, this approach may not be sufficient or effective.
Now we have important information about consumers and offset management, we can talk about the frequently talked about message delivery strategies for message brokers and how we can write Kafka consumers that implement these strategies.
At Most One Message Delivery
This message delivery strategy ensures that, message will be published to the consumer at most once. Message might be lost but not redelivered. We can implement this behaviour by following steps:
- Set kafka producer acknowledgement config as none. (acks = 0). By this configuration, producer will publish message and won’t wait for acknowledgement from kafka broker. This means even in case of message delivery failure, producer assumes message has been successfully delivered, and won’t retry.
- In the consumer, fetch message from topic, and commit the offset before processing the message. If the consumer crashes after committed the offset, message won’t be re-consume.
var config = new ConsumerConfig
{
EnableAutoCommit = false
}
...
while (!cancelled)
{
var consumeResult = consumer.Consume(cancellationToken);
consumer.Commit(consumeResult);
// process message after committed the offset
...
}At Least One Message Delivery
This message delivery strategy ensures that, the message will be published to the consumer at least once, with a guarantee that no message should be lost. In the event of a failure or error during message delivery, the message will be redelivered. This strategy comes with a possibility of duplicate message processing. We can implement this behaviour by following steps:
- Set kafka producer acknowledgement config as leader or all. (acks=1 or acks=all). By this configuration, producer will publish message and will wait for acknowledgement from kafka. Getting acknowledgement means ensure that messages are published successfully to the topic. If message publishing fails, producer will retry the operation.
- In the consumer, fetch message from topic, process the message, then commit the offset. If the consumer crashes before committed the offset, message will be re-consume. As we said this strategy comes with a possibility of duplicate message, we can use auto offset commit and manuel storing offset mechanisms for max performance.
var config = new ConsumerConfig
{
EnableAutoCommit = true
EnableAutoOffsetStore = false
}
...
while (!cancelled)
{
var consumeResult = consumer.Consume(cancellationToken);
// process message here.
...
//Store processed offsets. Offset commiting will be done automatically
consumer.StoreOffset(consumeResult);
}Exactly Once Message Delivery
This message delivery strategy ensures that, the message will be delivered to the consumer exactly once, with a guarantee that no message should be lost or reprocessed. For providing this strategy, consumers should be idempotent.
Consumer idempotency can be provided in many different ways, using a locking mechanism, using inbox pattern or writing consumer logics as run idempotent are some popular methods. We can implement this behaviour by following steps:
- Set kafka producer acknowledgement config as leader or all. (acks=1 or acks=all). By this configuration, producer will publish message and will wait for acknowledgement from kafka. Getting acknowledgement means ensure that messages are published successfully to the broker. If message publishing fails, producer will retry the operation.
- In the consumer, fetch message from kafka, and check any lock exist for fetched event. process the message if lock not exist, create lock and then commit the offset. With locking check, we won’t process a message twice.
var config = new ConsumerConfig
{
EnableAutoCommit = true
EnableAutoOffsetStore = false
}
...
while (!cancelled)
{
var consumeResult = consumer.Consume(cancellationToken);
var message = JsonSerializer.Deserialize<ComplexType>(consumeResult.message);
//Check is lock exist with a unique id in message
if(_lockManager.LockExist(message.uniqueId) is false)
{
// process message here.
...
// add lock after processed the message
_lockManager.AcquireLock(message.uniqueId);
}
//Store processed offsets. Offset commiting will be done automatically
consumer.StoreOffset(consumeResult);
}In the consumer example above, there will be error cases such as getting error when creating a lock after processing the message. This cases need to be considered and handled. Writing idempotent consumers, using inbox pattern or other idempotency strategies is also an option for this strategy.
So we come to the end of another article. I tried to answer the questions of what are kafka consumers and how can we use them effectively with my experiences and knowledge. Any feedback is very important to me, please feel free to do!
